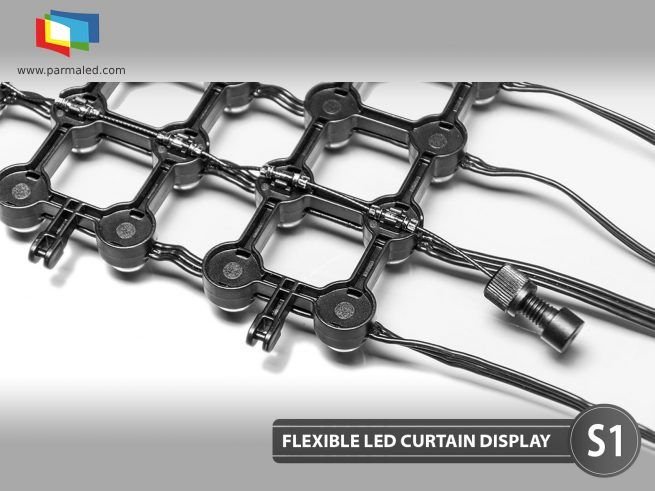

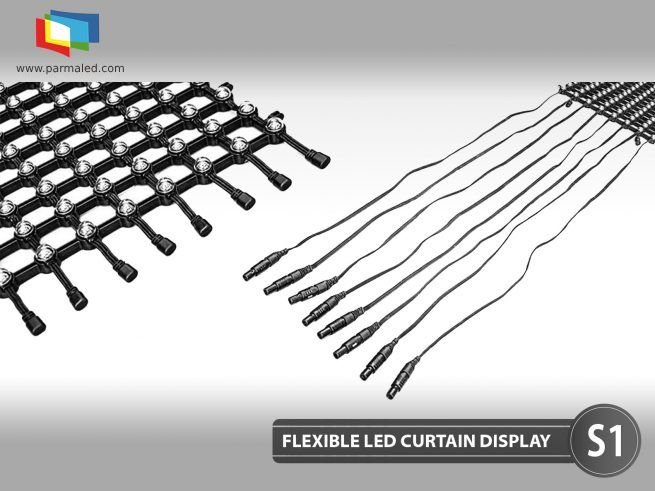

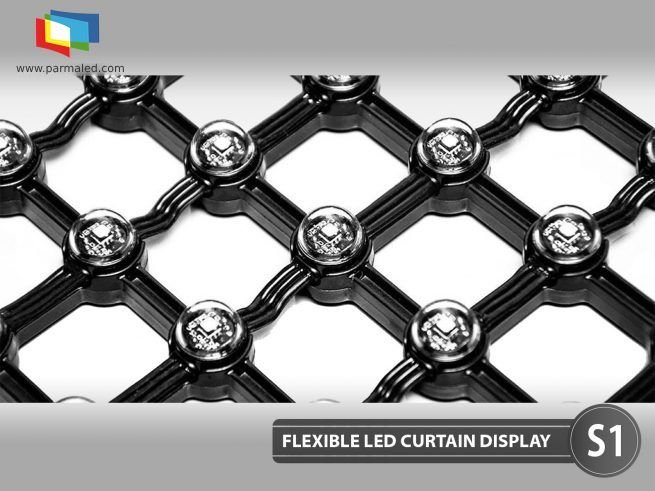

Curtain Flexible Led display S1 SMD 3535 IP66 standards.

Categories: ,
  1. Genel Bilgiler

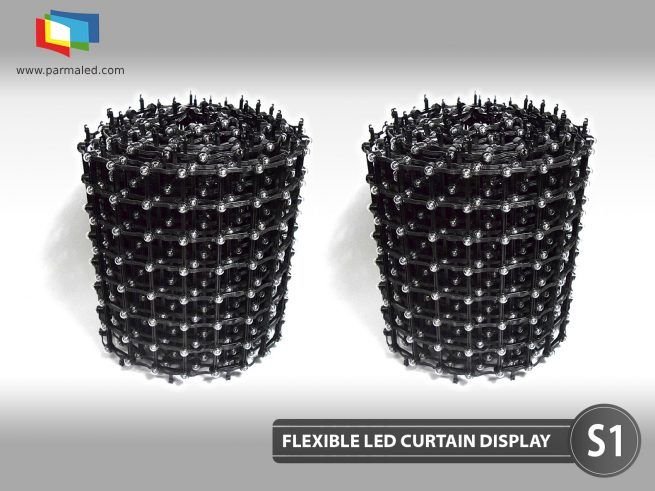

    Flexible Curtain Led Display S1, is a flexible led display type, Ultra flexible design makes it freely curved to achieve creative shapes such as arch, circle, wave and customized size available. Flexible Curtain Led Screen S1 with 70% transparency rate is the right choice for creating perfect visual effect.

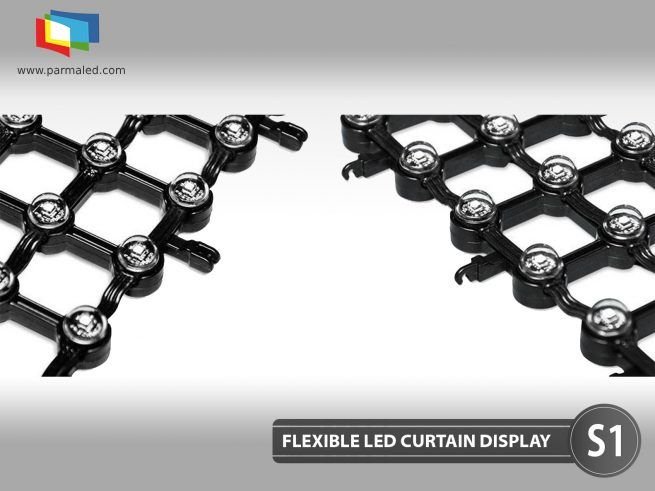

    Fast inter-panel locks make it easy to install and remove large-scale displays, no tools required. Fast connection is made with Sonmez LED Flexible Curtain Led Screen S1 by using two binders at the bottom. Flexible Curtain Led Display can be used to reveal various creative ideas with S1. Flexible Curtain Led Screen S1 all waterproof panels are used on the screen.

  2. Technical information
    Model S1
    Pixel Pitch 37.5mm / 56.25mm (pixel pitch can be customized)
    Pixel Configuration 1XSMD3535
    Panel Size 300*4800 mm / 450*7200mm (size can be customized)
    Panel Resolution 8×128 pixels
    Panel Weight 4kg /sqm ; 2.4kg/sqm
    Brightness 2000 nits / 800 nits (Nationstar SMD-RS-3535MWAM)
    IP Rating(Front/Rear) IP66
    Refresh Rate 1000 – 3000 Hz
    Transparency Rate 70% / 80%
    Scan Mode Static
    Max Power Consumption 280 W/㎡ ; 100 W/㎡
    Cabinet Material Die-casting Aluminum
    Color Processing 16 bit
    Viewing Angle（H/V） 140°/110°
    Operating Temperature -40~45°C
    Main Power Source AC 100~240V; 50/60Hz
    Input Voltage 7.5V DC
    Humidity 10~90%RH
    Life Time 100,000 Hours
  3. More Information

    Contact us to get more information about our products.

    • 4 + 30 =
  4. Application Video

  5. Benzer Ürünler

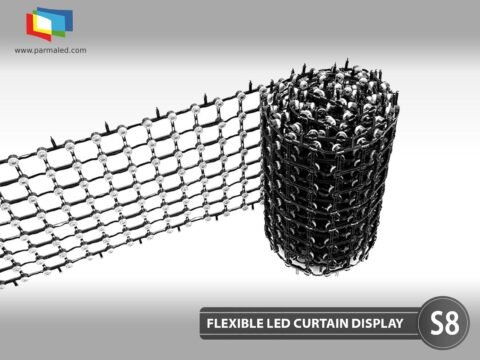

    Curtain Flexible Led Display S8

    Curtain Flexible Led display S83 SMD 3535 IP66 standards.

    Devamı

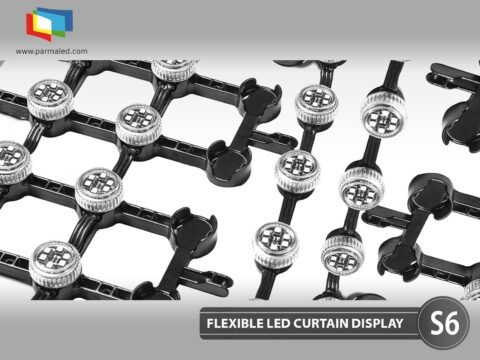

    Curtain Flexible Led Display S6

    Curtain Flexible Led display S6 SMD 3535 IP66 standards.

    Devamı

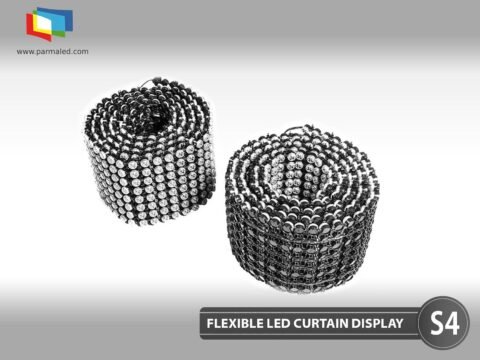

    Curtain Flexible Led Display S4
