Curtain Flexible Led display S4 SMD 3535 IP66 standards.

Categories: ,
  1. Genel Bilgiler

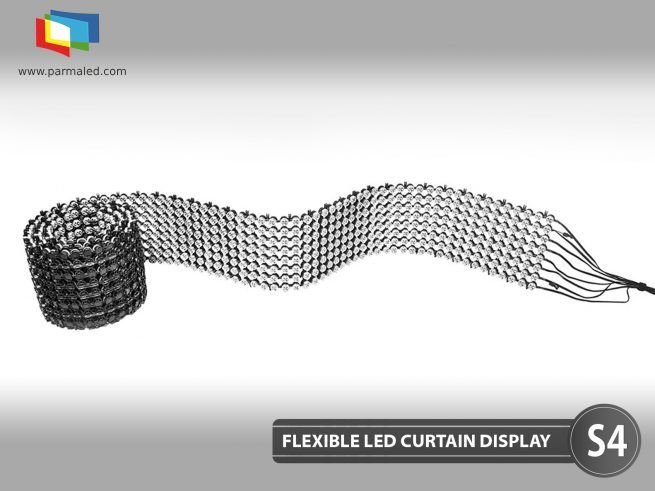

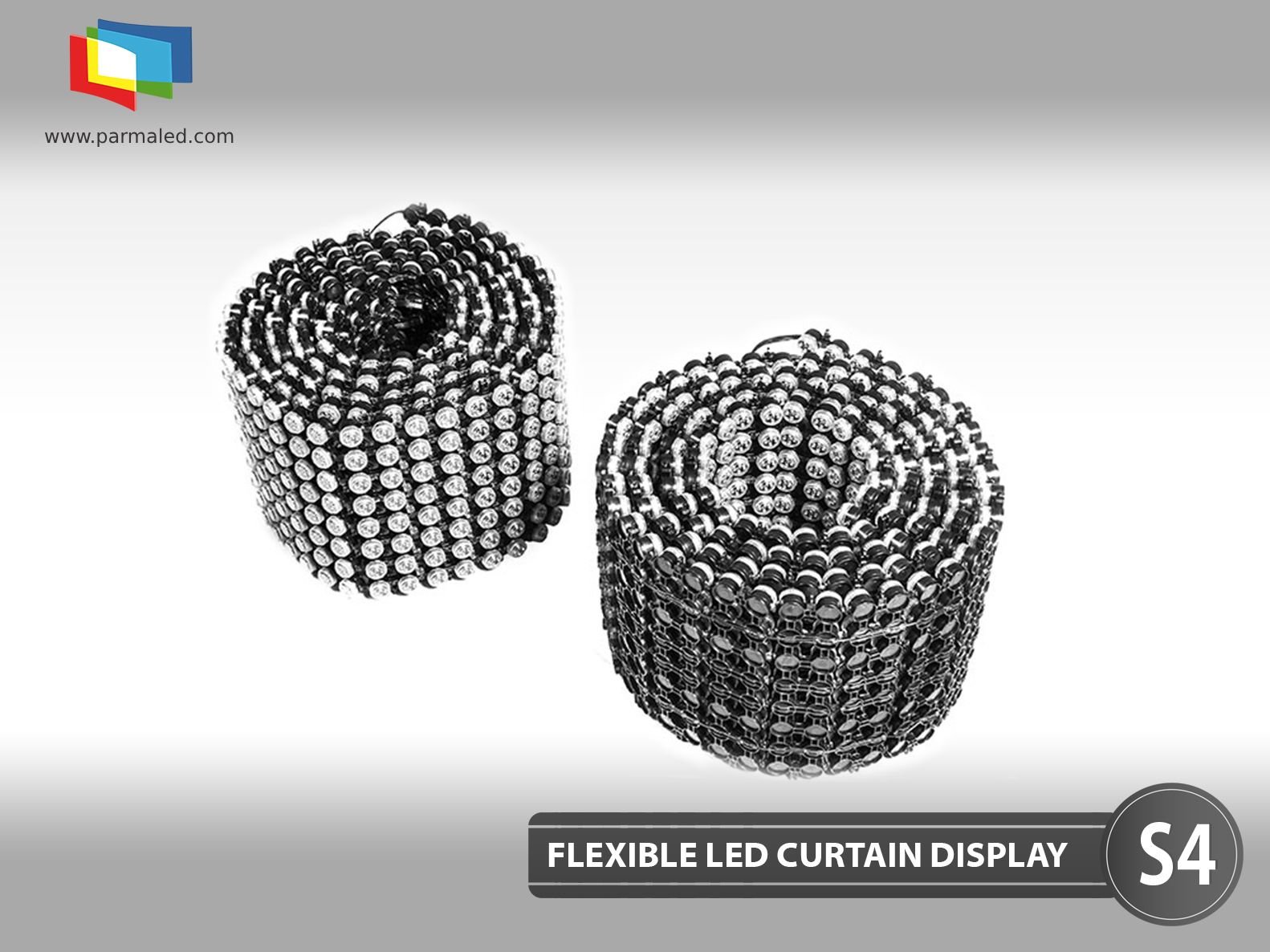

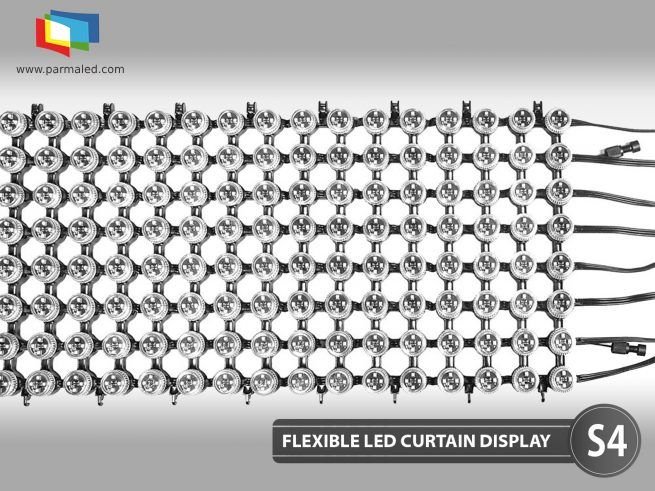

    Flexible Curtain Led Display S4, is a flexible led display type, Ultra flexible design makes it freely curved to achieve creative shapes such as arch, circle, wave and customized size available. Flexible Curtain Led Screen S4 with 70% transparency rate is the right choice for creating perfect visual effect.

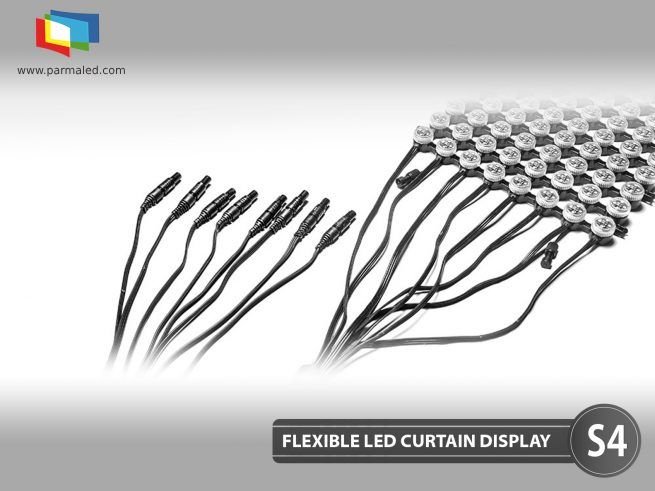

    Fast inter-panel locks make it easy to install and remove large-scale displays, no tools required. Fast connection is made with Sonmez LED Flexible Curtain Led Screen S4 by using two binders at the bottom. Flexible Curtain Led Display can be used to reveal various creative ideas with S4. Flexible Curtain Led Screen S4 all waterproof panels are used on the screen.

  2. Technical information
    Model S4
    Pixel Pitch 37.5mm / 56.25mm / 75mm (pixel pitch can be customized)

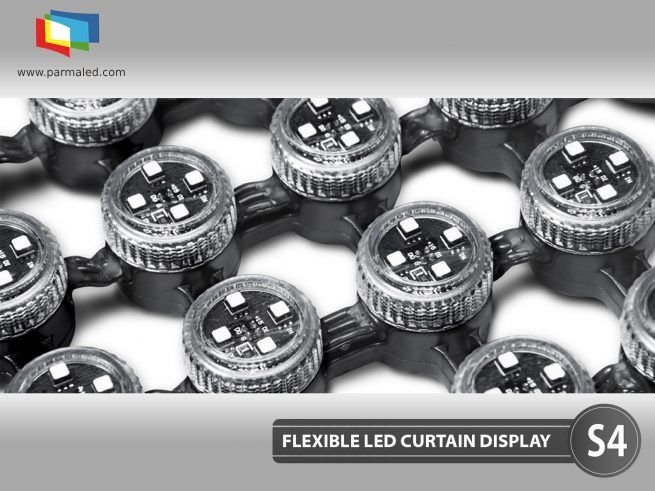

    Pixel Configuration 4XSMD3535
    Panel Size 0.3m x 4.8m / 0.45m x 7.2m / 0.6m x 9.6m (Size can be customized) 0.98′ x  15.75′ / 1.48′ x 23.62′ / 1.97′ x 31.50′
    Panel Resolution 8×128 pixels
    Panel Weight 10.5 kg/sqm;  5.5 kg/sqm; 3.5 kg/sqm 23.1 lbs/sqm; 12.1 lbs/sqm; 7.7 lbs/sqm
    Brightness 5400nits / 2400nits / 1600nits  (Nationstar SMD3535)
    IP Rating(Front/Rear) IP66
    Refresh Rate 1000 – 3000 Hz
    Transparency Rate 55% / 75% / 85%
    Scan Mode Static
    Max Power Consumption 500 W/sqm; 300 W/sqm ; 150 W/sqm
    Cabinet Material Die-casting Aluminum
    Color Processing 16 bit
    Viewing Angle（H/V） 140°/110°
    Operating Temperature -40~45°C
    Main Power Source AC 100~240V; 50/60Hz
    Input Voltage 15V DC
    Humidity 10~90%RH
    Life Time 100,000 Hours
